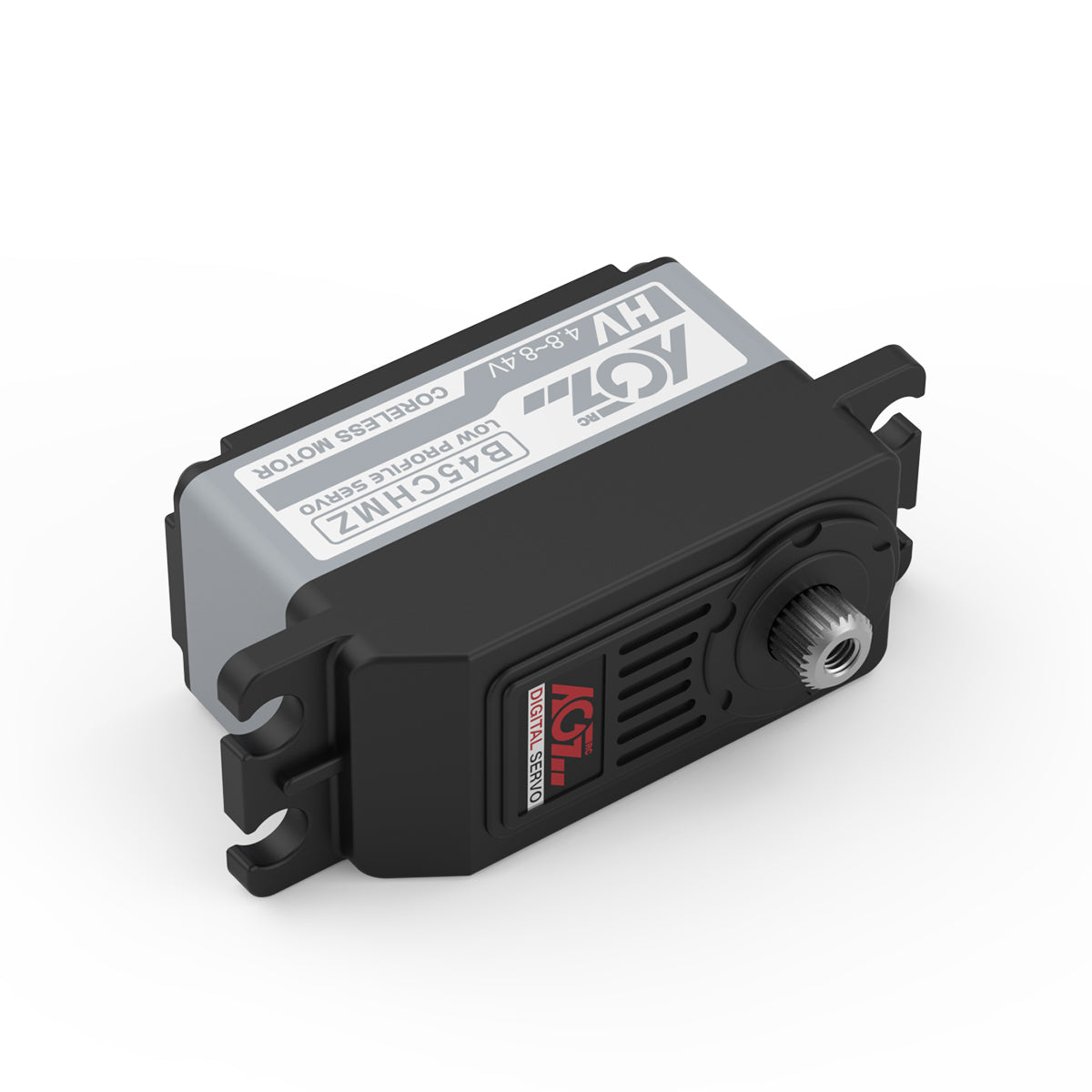

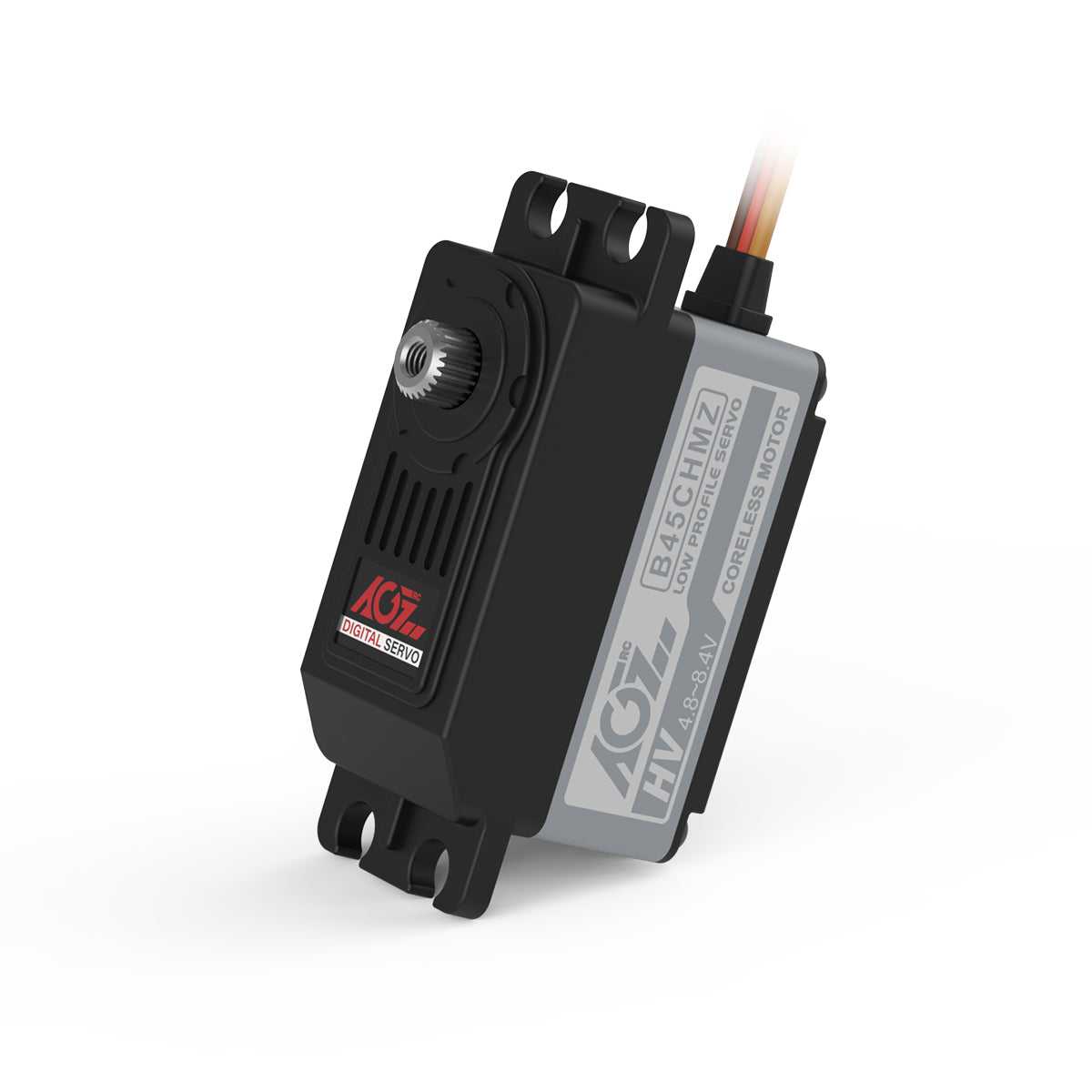

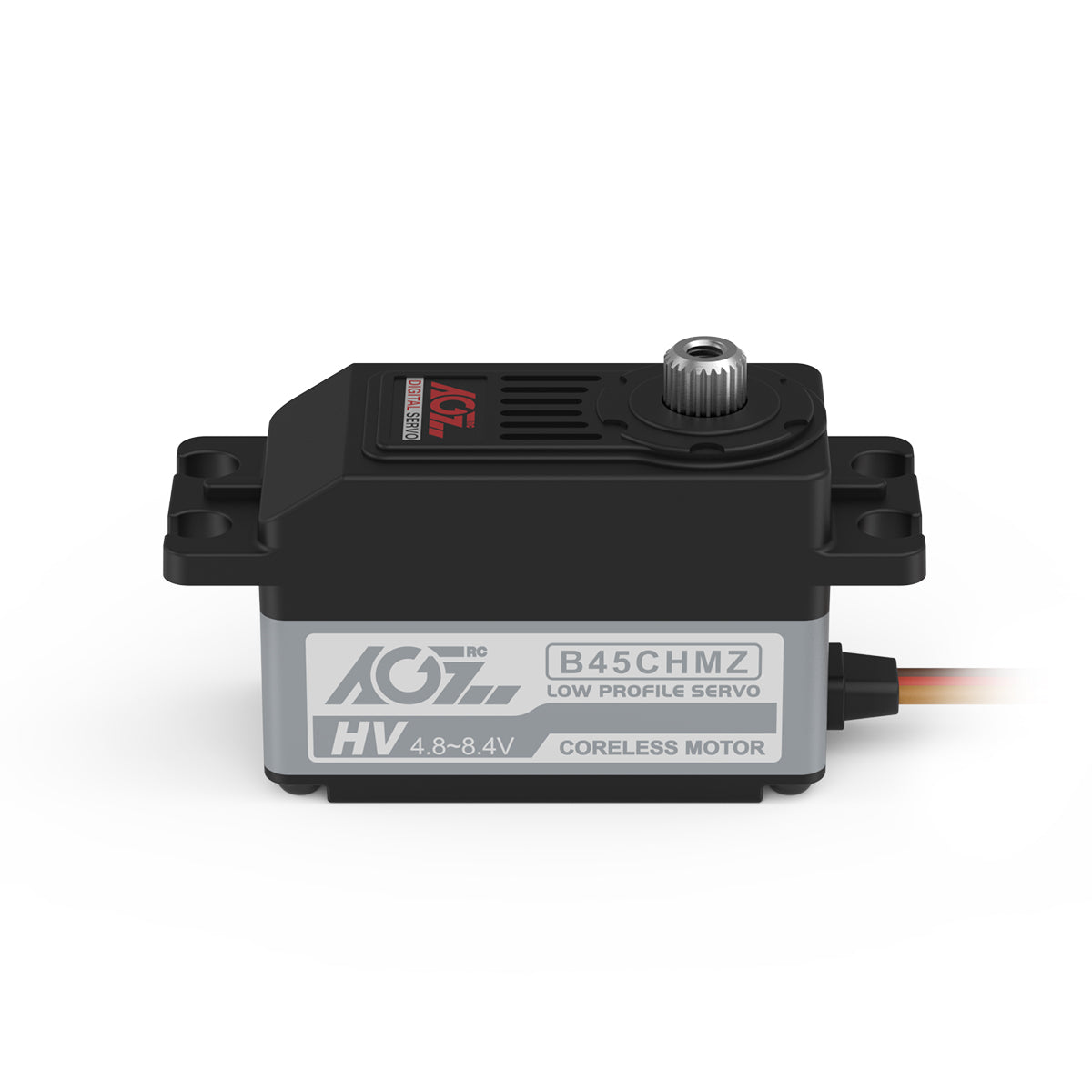

AGFRC B45CHMZ Good Price 45g HV 14KG 0.085Sec Low Profile Coreless Competition Servo

SKU: SKU: B45CHMZ

• Description

  1/8 , 1/10, 1/12 SCALE CARS

  Product Description

  The B45CHMZ low profile servo is a high-performance and affordable practical servo that is within the budget range that most customers can accept. We still use 8.4V strong voltage drive for it, the maximum torque can reach 14KG and the fast speed of 0.086Sec. Its shell is composed of plastic and CNC shell, and the shell is gray and highly recognizable. The thin and light body allows it to accommodate many models. In the internal structure of the servo, the high-quality coreless motor can work closely with the high-precision titanium gear and operate in an orderly manner.




  Feature


  High Performance Low Profile Digital Servo

  High Precision Titanium Gear

  High Efficiency Coreless Motor

  Super Fast Response

  Smooth Dual Ball Bearing

  Aluminium Middle Case

  Ideal for 1/10, 1/12 Drift Racing Car, Touring Car, Boat, Aircraft, Robot etc.




  Specification

  B45CHMZ

  Operating Voltage: 4.8-8.4 V

  Operating speed: 0.105sec/60°@ 6.0V

  Operating speed: 0.095sec/60°@ 7.4V

  Operating speed: 0.085sec/60°@ 8.4V

  Stall Torque: 11 kg.cm (153 oz-in ) @ 6.0V

  Stall Torque: 13 kg.cm (180 oz-in ) @ 7.4V

  Stall Torque: 14 kg.cm (195 oz-in ) @ 8.4V

  Gear: Titanium

  Motor: Coreless

  Size: 40.8*20.2*26.1mm (1.60 x 0.79 x 1.02 in)

  Weight: 45g

  Connector Wire: JR 180 mm / 22AWG
