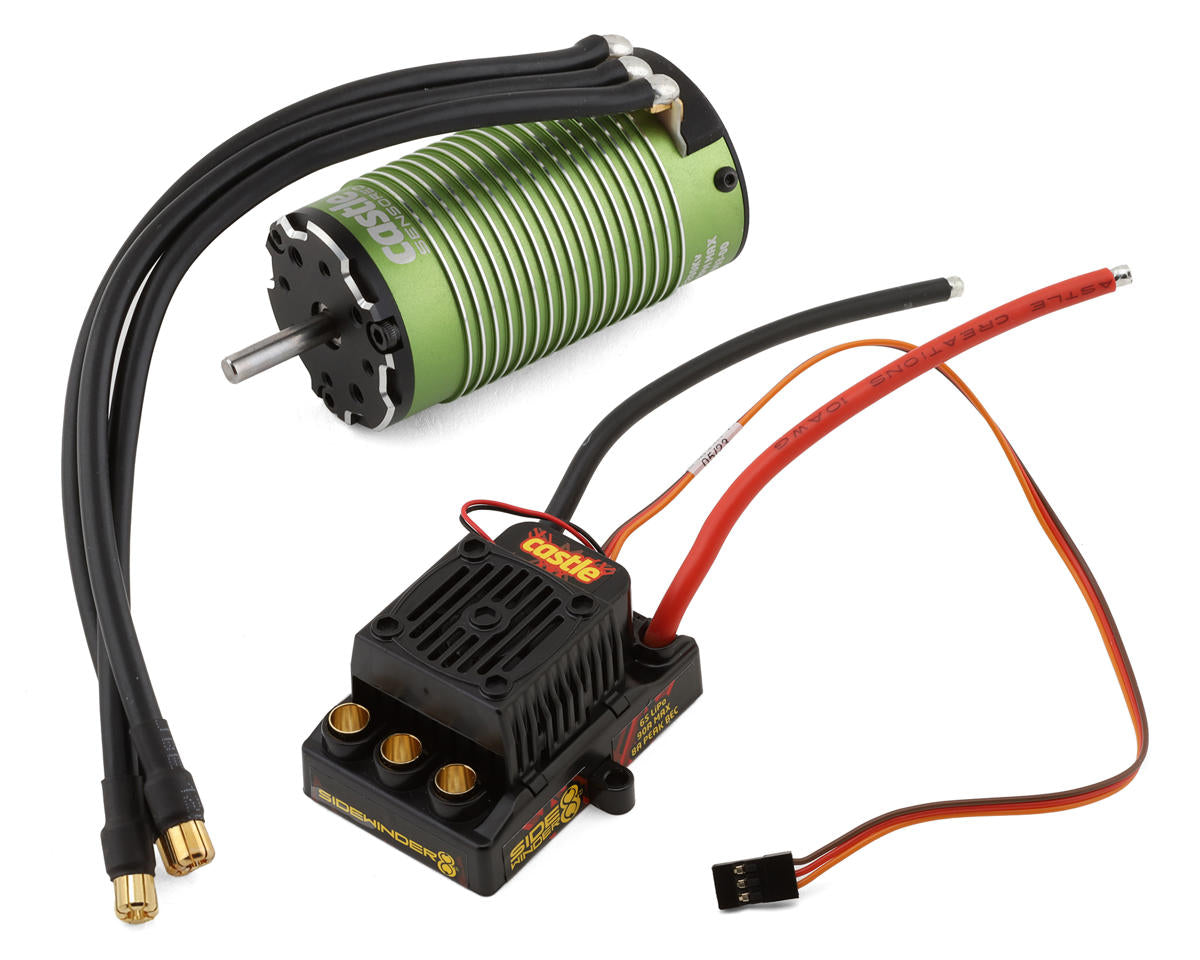

Castle Creations 010-0139-02 Sidewinder 1/8 Brushless ESC Combo w/1515 V2 Sensored Motor (2200kV)

SKU: SKU: 010-0139-02

• Description

  Sidewinder 8th is Castle Creations' sport 1/8 scale waterproof combo that is capable of 2S-6S LiPo with an 8amp peak BEC. This is the perfect upgrade for 1/8 scale buggies, truggies and on-road vehicles, as well as 1/10 scale monster trucks weighing up to 11lbs. It can also work as a great upgrade for some 4WD short course trucks running on 3S or 4S with available space! Making this affordable ESC a superior versatile option for different platforms and needs! You will have all the power your 1/8th scale vehicle demands with smoother throttle control!




  Sidewinder 1/8th Features:

  • 2S-6S LiPo with vehicles up 11.lbs with battery, ready-to-run
  • Smooth Sensorless and sensored motor operation
• Waterproof design ESC and splash resistant 30mm fan
• Powerful 5.5 volts fixed, 8amps Peak BEC
• Convenient transmitter programming for nine common adjustable settings
• LED error codes for common error conditions
• Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
• Proudly designed, assembled and supported in Olathe, KS USA
• Backed by Castle Creations' 1-year Warranty

1515-2200 V2 MOTOR Features:

• Redesigned stator and rotor assemblies to improve magnetic flux
• Reduced magnetic cogging, producing less residual drag brake
• Increased efficiency, resulting in lower temperatures and longer run times
• Smoother start-up, reducing cogging or stuttering when starting from a stop
• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly
• High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
• Oversized NMB bearings and high-temperature, high-purity copper windings
• High performance 0.2mm steel lamination stacked stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with high quality temperature stabilized sensors
• T6 aluminum CNC-Machined front/rear end bell
• Proudly designed and supported in Kansas, USA

Specifications:

• ESC:
• Input voltage range: 2S-6S LiPo
• Length: 2.45" (62.2mm)
• Width: 2.20" (56mm)
• Height: 1.33" (34mm)
• Weight: 3.52oz (100g)
• On/Off Switch: Yes
• Cooling Fan: Yes, factory equipped
• Connector: 6.5mm female bullets for motor connection
• Wire Gauge: 8AWG


• Motor:
• Application: Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 15lbs
• Input Voltage Range: 2-6S LiPo
• Kv Rating: 2200Kv
• Max. RPM: 60.000
• Diameter: 40mm (41.4mm with fins)
• Length: 3.99" (101.2mm)
• Shaft Size: 20mm(Length), 5mm(Diameter)
• Weight(w/wires): Approx. 429g / 15.1oz; 380g without wires
• Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm
• Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.

NOTE:
(CSE011-0130-00) Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future.




Includes:

• (1) Sidewinder 1/8 Brushless ESC
• (1) 1515-2200Kv V2 Brushless Sensored Motor
• (1) Castle Sensor Harness Adapter
• (1) 210 mm sensor wire (for sensored operation)
• (1) Coupon for free Castle Link USB
