Castle Creations 010-0145-06 Monster X 1/8 Brushless Combo w/1515 V2 Sensored Motor (2200Kv)

Castle Creations 010-0145-06 Monster X 1/8 Brushless Combo w/1515 V2 Sensored Motor (2200Kv)

SKU: SKU: 010-0145-06

Regular price $299.95
Sale price $299.95 Regular price
Sale Sold out
Shipping calculated at checkout.
  • Description

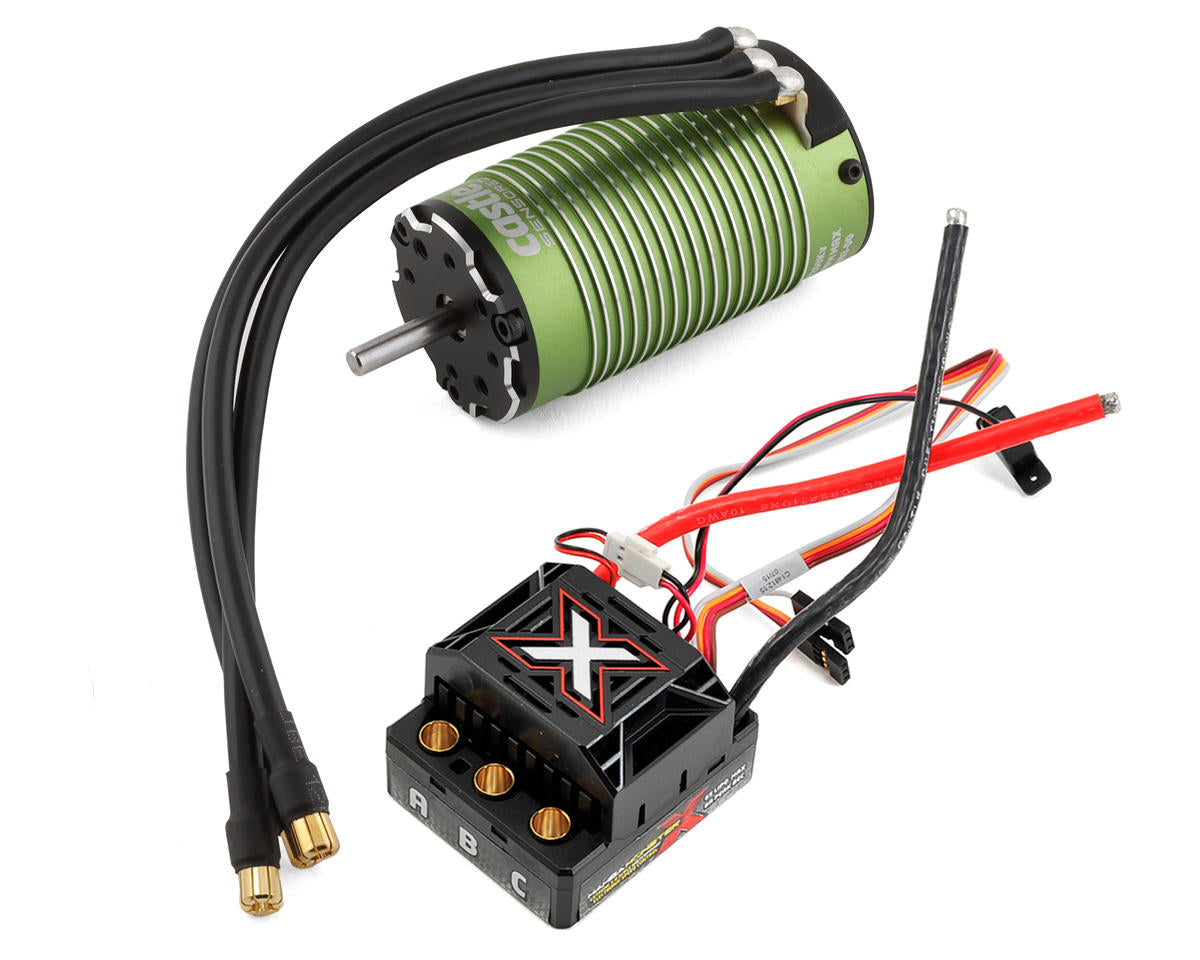

    Monster X 1/8 Brushless Combo with 1515 V2 Sensored Motor Mamba Monster X ESC and 1515-2200Kv V2 are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot) and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level!


    MAMBA MONSTER X FEATURES:

    • Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
    • Housed in a durable injection molded case and potted in Waterproof epoxy to protect the electronics and promote efficient heat transfer
    • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
    • Data Logging to capture and record performance data from your vehicle
    • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
    • Convenient Transmitter programming for six common adjustable settings including cutoff voltage and drag brake
    • SMARTSENSE™ uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability
    • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as max Power and max Brake
    • Proudly designed, assembled and supported in Kansas USA and backed by Castle Creations' 1-Year Warranty

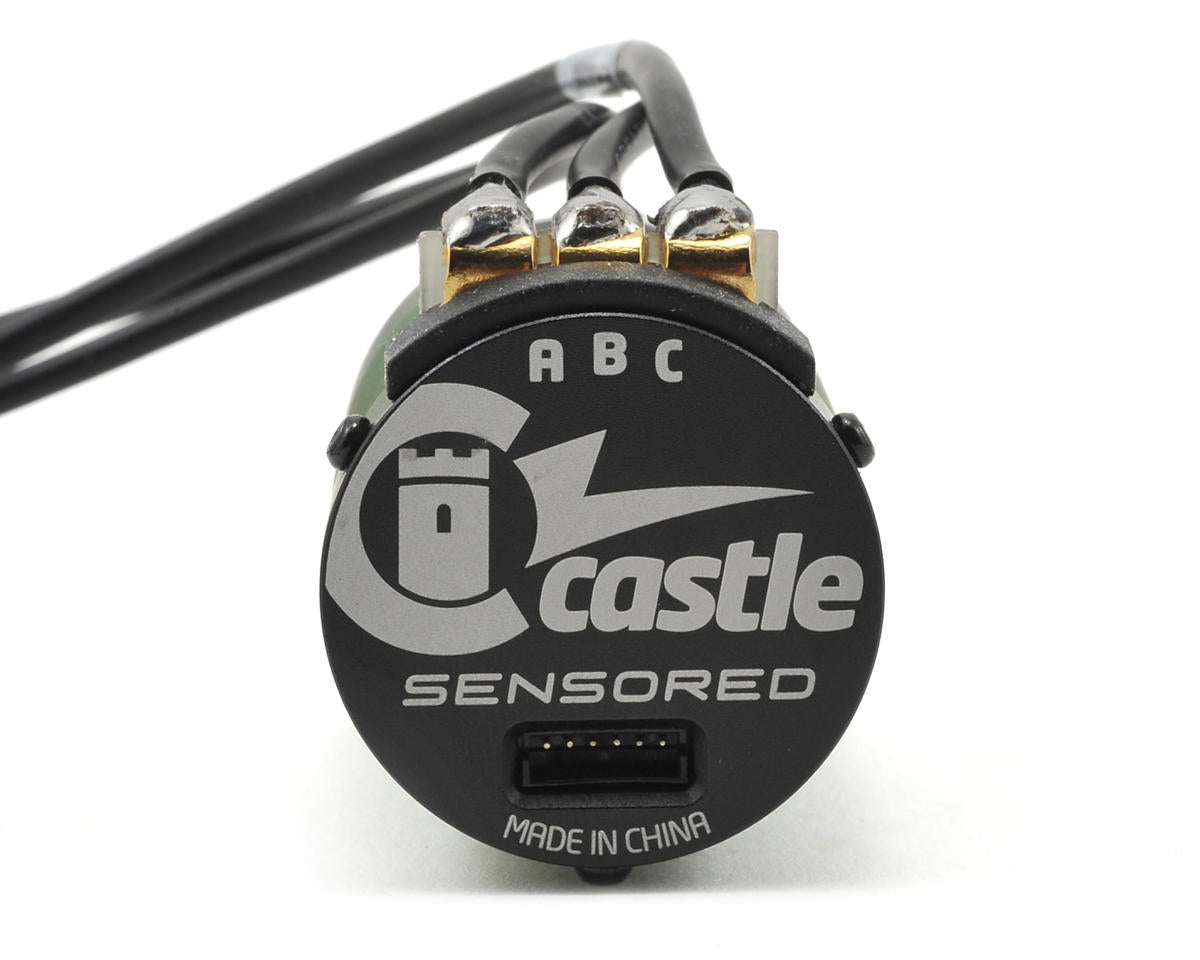

    1515-2200 V2 MOTOR FEATURES:

    • Redesigned stator and rotor assemblies to improve magnetic flux.
    • Reduced magnetic cogging, producing less residual drag brake.
    • Increased efficiency, resulting in lower temperatures and longer run times.
    • Smoother start-up, reducing cogging or stuttering when starting from a stop.
    • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
    • High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
    • Oversized NMB bearings and high-temperature, high-purity copper windings
    • High performance 0.2mm steel lamination stacked stator
    • Oversized, low-resistance, gold-plated solder tabs
    • Sensor board with high quality temperature stabilized sensors
    • T6 aluminum CNC-Machined front/rear end bell
    • Proudly designed and supported in Kansas, USA.

    Specifications:

      • ESC:
        • Input voltage range: 2S-6S LiPo
        • Length: 2.09" (53mm)
        • Width: 1.93" (49mm)
        • Height: 1.44" (36.4mm)
        • Weight: 3.92 oz. (111.g)
        • On/Off Switch: Yes
        • Cooling Fan: Yes, factory equipped (30mm), fully removable**
        • Connector: 6.5mm female bullets for motor connection.
        • Wire Gauge: 8AWG
        • Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters
      • Motor:
        • Application: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
        • Input Voltage Range: 2-6S LiPo
        • Kv Rating: 2200Kv
        • Max. RPM: 60.000
        • Diameter: 40mm (41.4mm with fins)
        • Length: 3.99" (101.2mm)
        • Shaft Size: 20mm(Length), 5mm(Diameter)
        • Weight(w/wires): Approx. 429g / 15.1oz; 380g without wires.
        • Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm
        • Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.

    Includes:

      • (1) Mamba Monster X ESC
      • (1) 1515-2200Kv V2 Brushless Sensored Motor
      • (1) Castle Sensor Harness Adapter

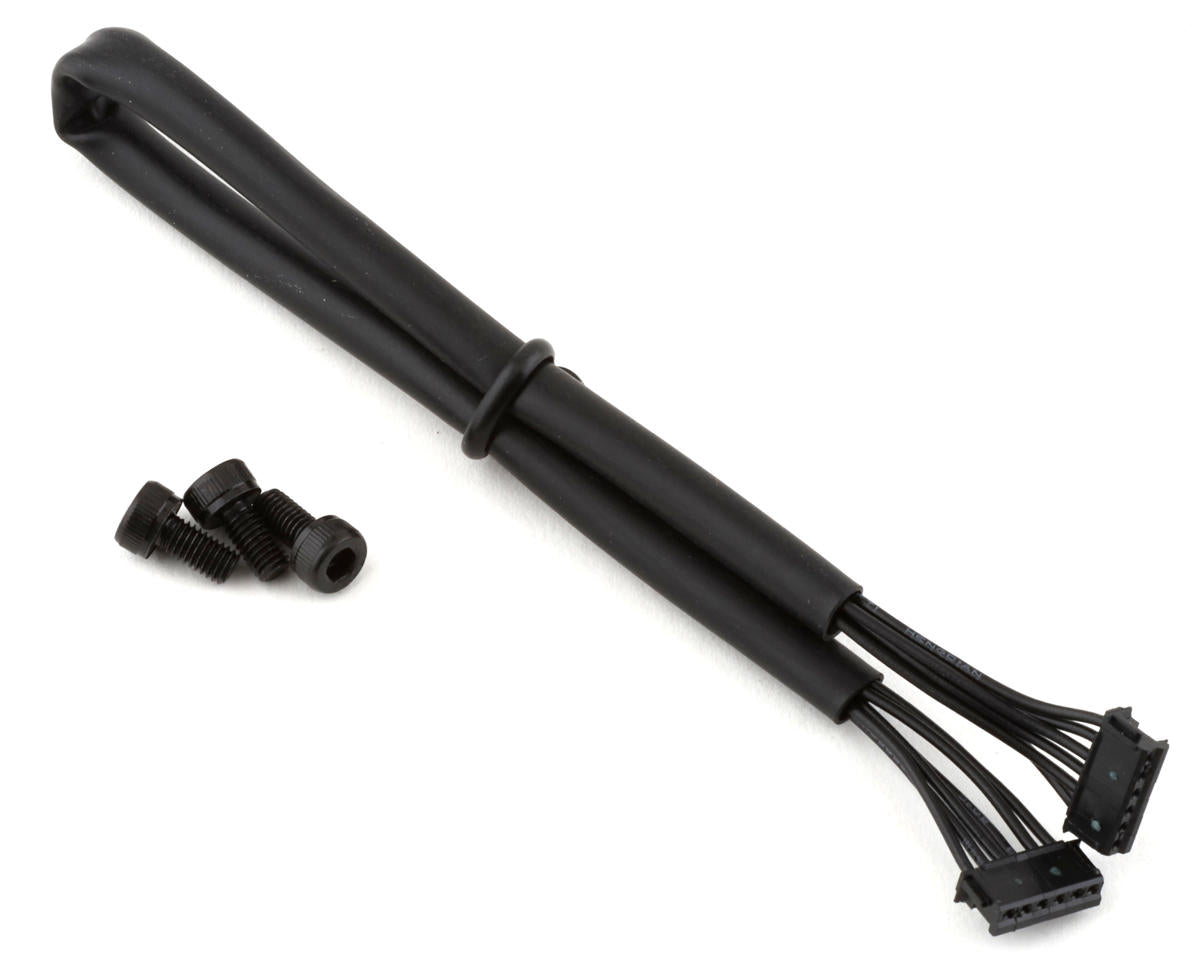

      • (1) 210 mm sensor wire (for sensored operation)
      • (1) Coupon for free Castle Link USB
      • (1) Mamba Monster X Quick Start Guide and Decals
