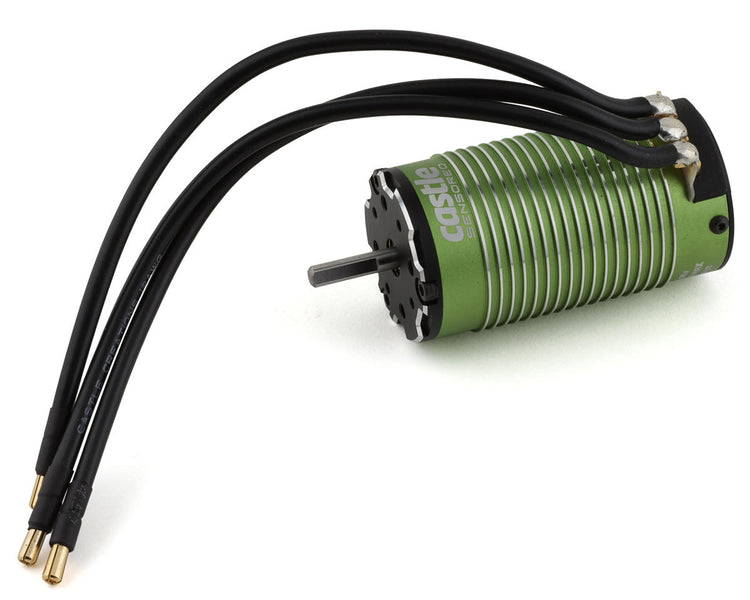

Castle Creations 060-0084-00 1515 Sensored 4-Pole Brushless Motor (2200kV)

SKU: SKU: 819326012426

• Description

  The Castle Creations 1515 Sensored 4-Pole Brushless Motor is now offered in this eBuggy version. Taking the same crazy horsepower of the 1/8 1515-2200Kv motor this eBuggy version is now modified to work with the Mamba X 1/10 ESC in 1/8 buggy applications up to 9lbs. Using smaller 4mm bullet connectors and 12AWG wire this motor is ready to plug right into the Mamba X and overpower your next build!


  EFFICIENCY IS KEY

  The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.

  RELIABILITY CAN’T BE IGNORED

  Without a robust and reliable design, efficiency will only go so far. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Proprietary winding techniques allow Castle to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability.

  INTEGRATED SOPHISTICATION

  Castle engineers always add a little something extra in their designs that takes your performance to the next level. When paired with a Castle Creations sensor supported ESC, like the Mamba X 1/10 ESC, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors. With a Castle sensored ESC and sensored motor you will have the ultimate power plant for your vehicle.

  Features:

  • Improved 4-POLE 12-SLOT design boasts exceptional efficiency and produces less heat.
  • QUIETSENSE technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even higher precision and more efficient startups.
  • Optimized design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • Rebuildable design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
  • ROAR standard sensor port and labeled connections.
  • Updated modern and sleek design; looks as cool as it performs.

  Specifications:

  Input Voltage Range: 2S-6S LiPo (4s max when paired with Mamba X ESC)

  Kv: 2200

  Max. RPM: 60,000

  Length: 75.4mm

  Diameter: 40mm (41.4mm with fins)

  Shaft Length: 20mm

  Shaft Diameter: 5mm

  Mounting Hole Specifications: 3mm and 4mm @ 25mm

  Cooling Fan: Optional

  Connectors: 4mm male Castle Bullet Connectors, includes 210mm length sensor wire.

  Items Needed for Operation: Compatible Electronic Speed Control (ESC)

  Max. Recommended Vehicle Weight: Ideal for 1:8 scale Off-Road buggies weighing up to 9 lbs.

  Recommended ESC(s): Mamba X 1/10 ESC

  Included:

  • (1) 1515 Sensored 4-Pole Brushless Motor (2200kV)
  • (1) Sensor Cable (210mm)
  • Mounting Hardware
