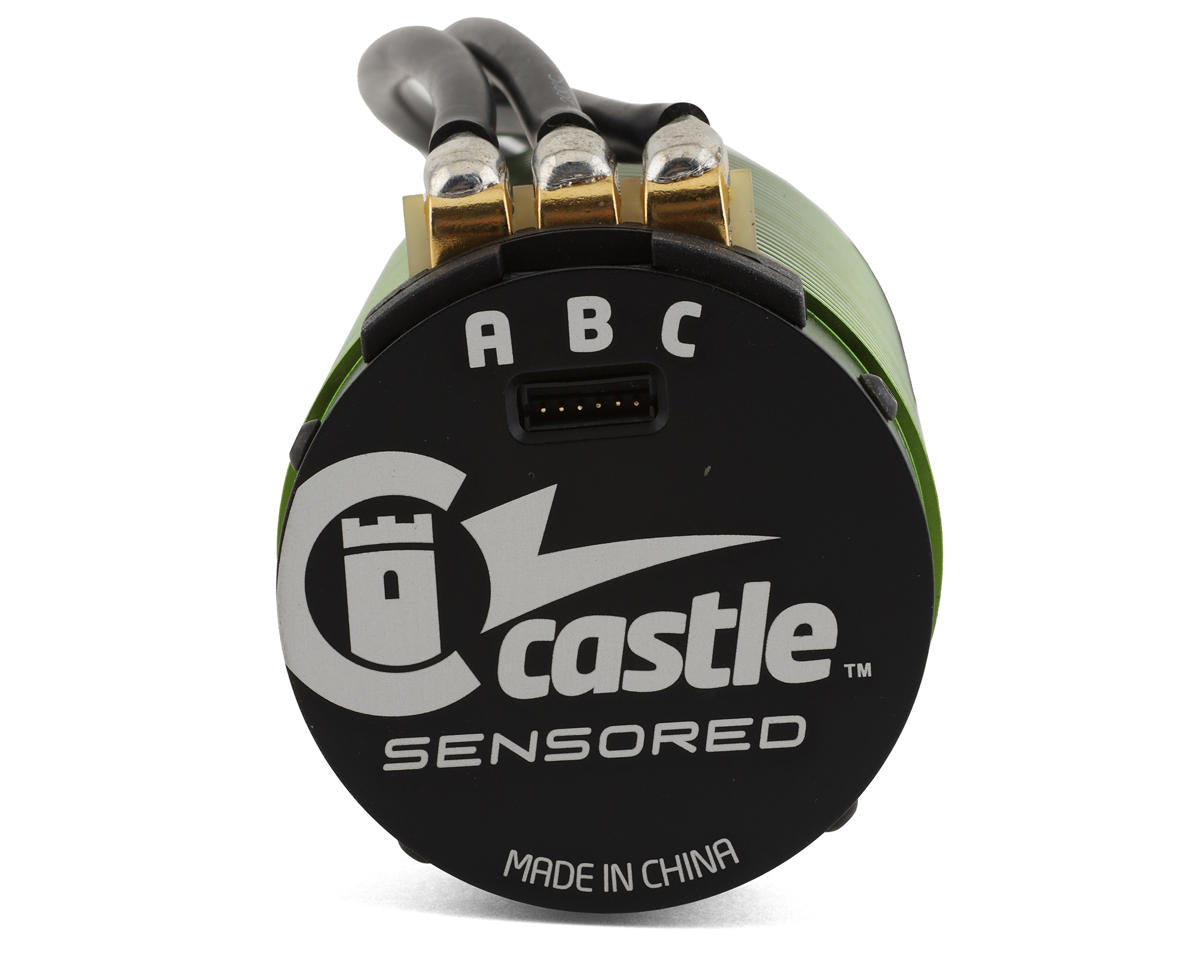

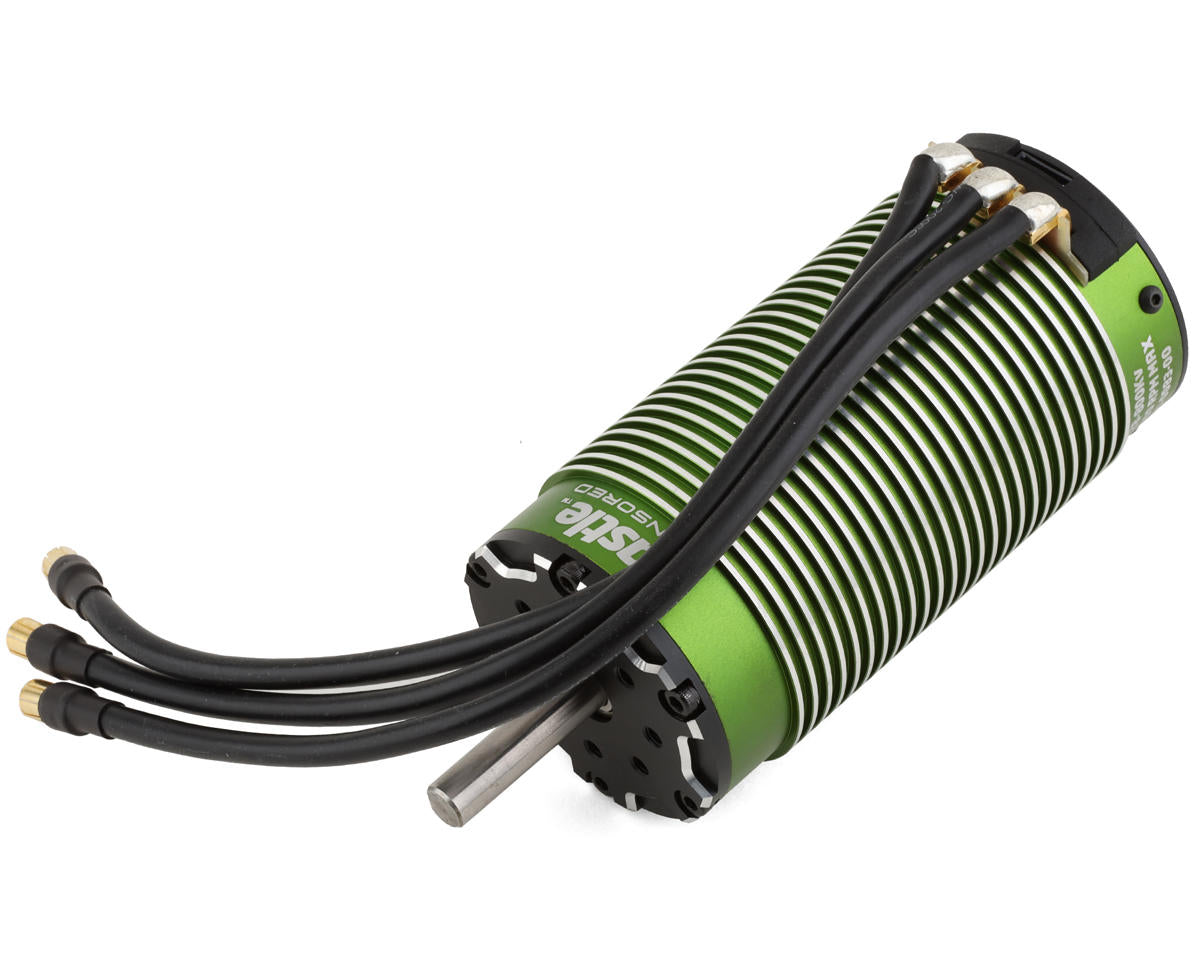

Castle Creations 2028 1/6 4-Pole Sensored Brushless Motor (800kV)

SKU: SKU: 060-0083-00

• Description

  This is the Castle Creations 2028 1/6 4-Pole Sensored Brushless Motor now offered in this 1/6 version. Using the same high quality, powerful 2028 design used in 1/5 vehicles this 1/6 version has been tailored to accept the Mamba Monster X 8S ESC with 6.5mm bullet connectors and 10AWG wire. Designed to take on the harsh demands of todays 1/6 vehicles this 2028 motor from Castle Creations offers extreme power and efficiency. This 800KV motor now has an improved 4-Pole 12-Slot design that boasts exceptional efficiency and produces less heat. If you need large scale power this 2028-800KV brushless sensored motor will no doubt hold up to the heavy throttle and extended usage that 1/6th scale vehicles encounter.

  Features:


  • Running modes include Sensored and an ULTRA-EFFICIENT Sensorless mode.
  • High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
  • Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
  • Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
  • Dual sensor ports to ensure optimal installation in your large-scale vehicle.
  • Updated modern and sleek design; looks as cool as it performs.

  Specifications:


  Input Voltage Range: 8S LiPo

  Kv: 800

  Max. RPM: 45,000

  Sensored Capable: Yes

  Length: 4.4" (112.7mm)

  Diameter: 2.2" (56.3mm)

  Weight (w/wires): 44 oz. (1.25kg)

  Shaft Length: 30mm

  Shaft Diameter: 8mm

  Mounting Hole Specifications: 4mm holes @ 30mm spacing.

  Cooling Fan: Available, but not included. Recommended CSE011-0153-00

  Connectors: 6.5mm male connectors

  Recommended ESC: Mamba Monster X 8S

  Running Modes: Sensorless and Sensored

  Max. Recommended Vehicle Weight: 4WD vehicles weighing less than 25lbs.

  Includes:


  • (1) 2028 1/6 4-Pole Sensored Brushless Motor (800kV)

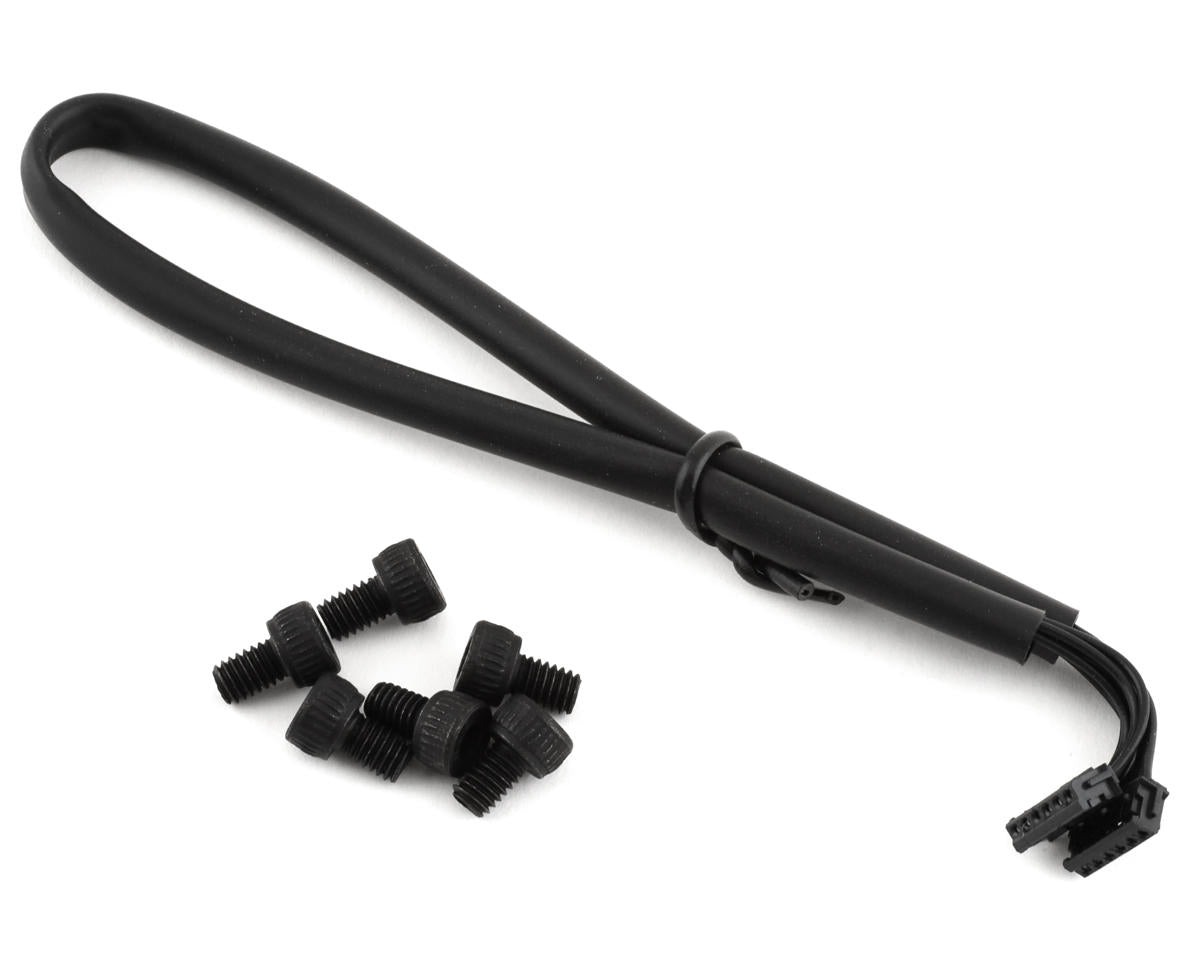

  • (1) Sensor Cable

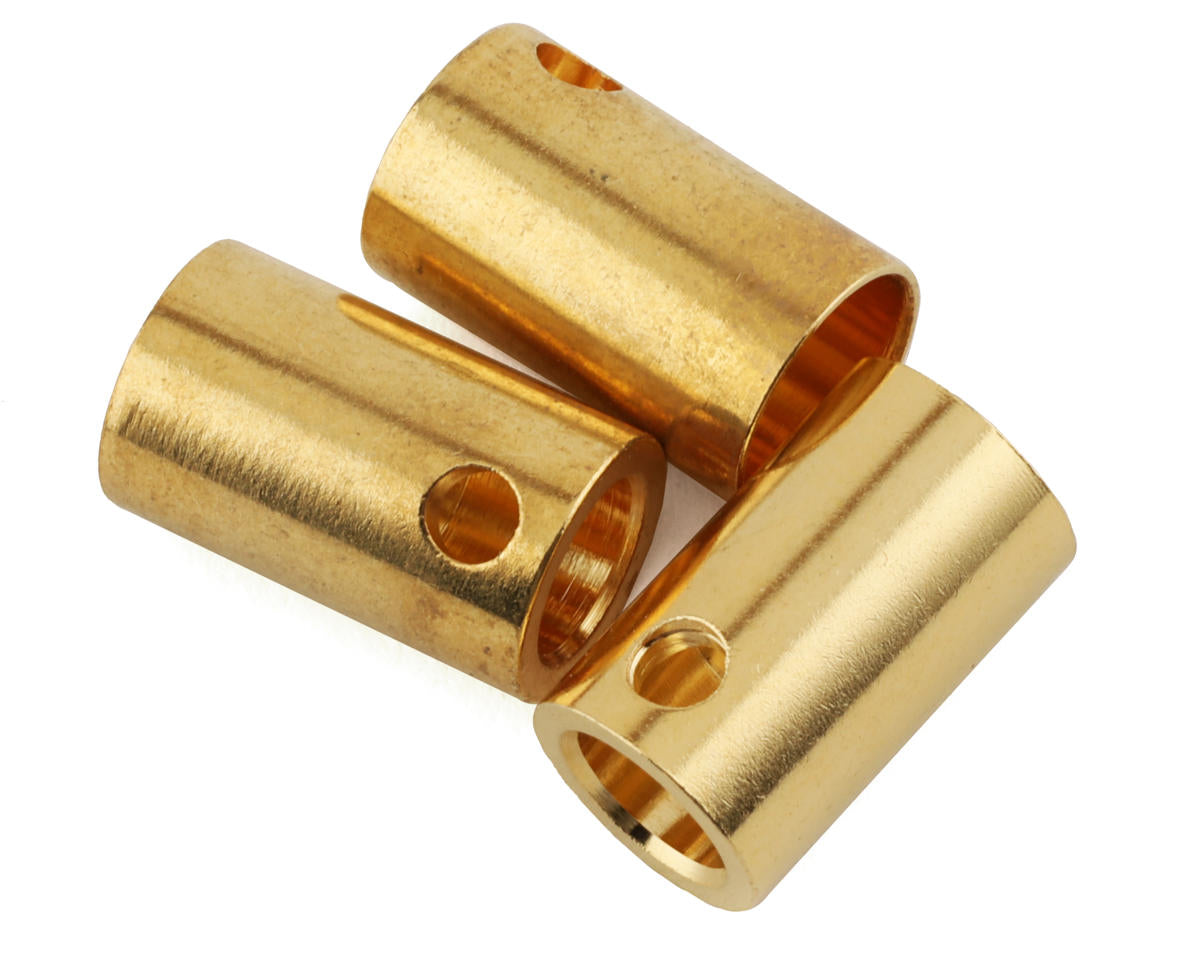

  • (3) 6.5mm Female Bullet Connectors
  • Mounting Hardware
