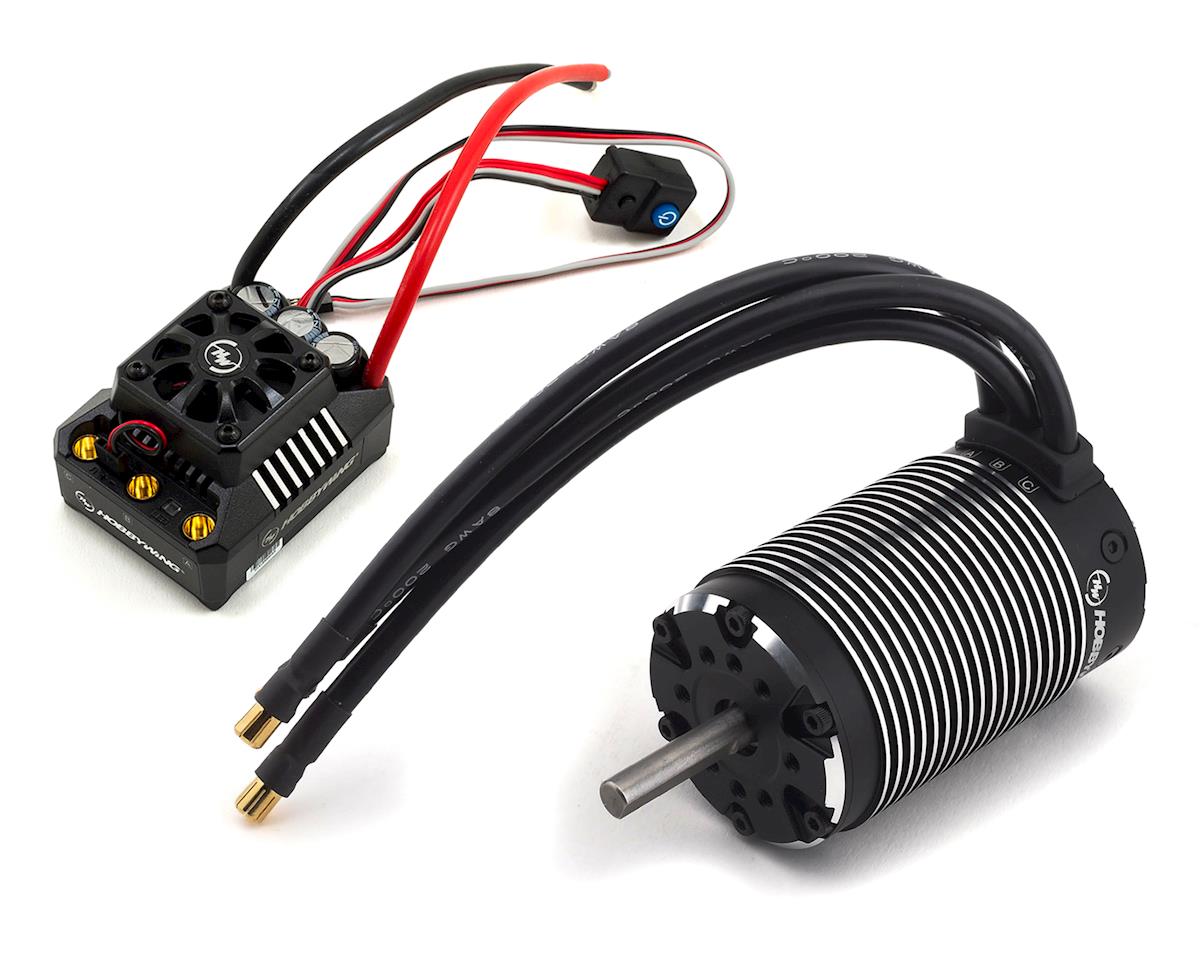

Hobbywing 38010802 MAX6 V3 Sensorless Brushless ESC & Motor w/5687SL (1100kV)

SKU: SKU: 38010802

• Description

  The Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 5687SL 1/5 scale, 1150kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.

  Specifications:

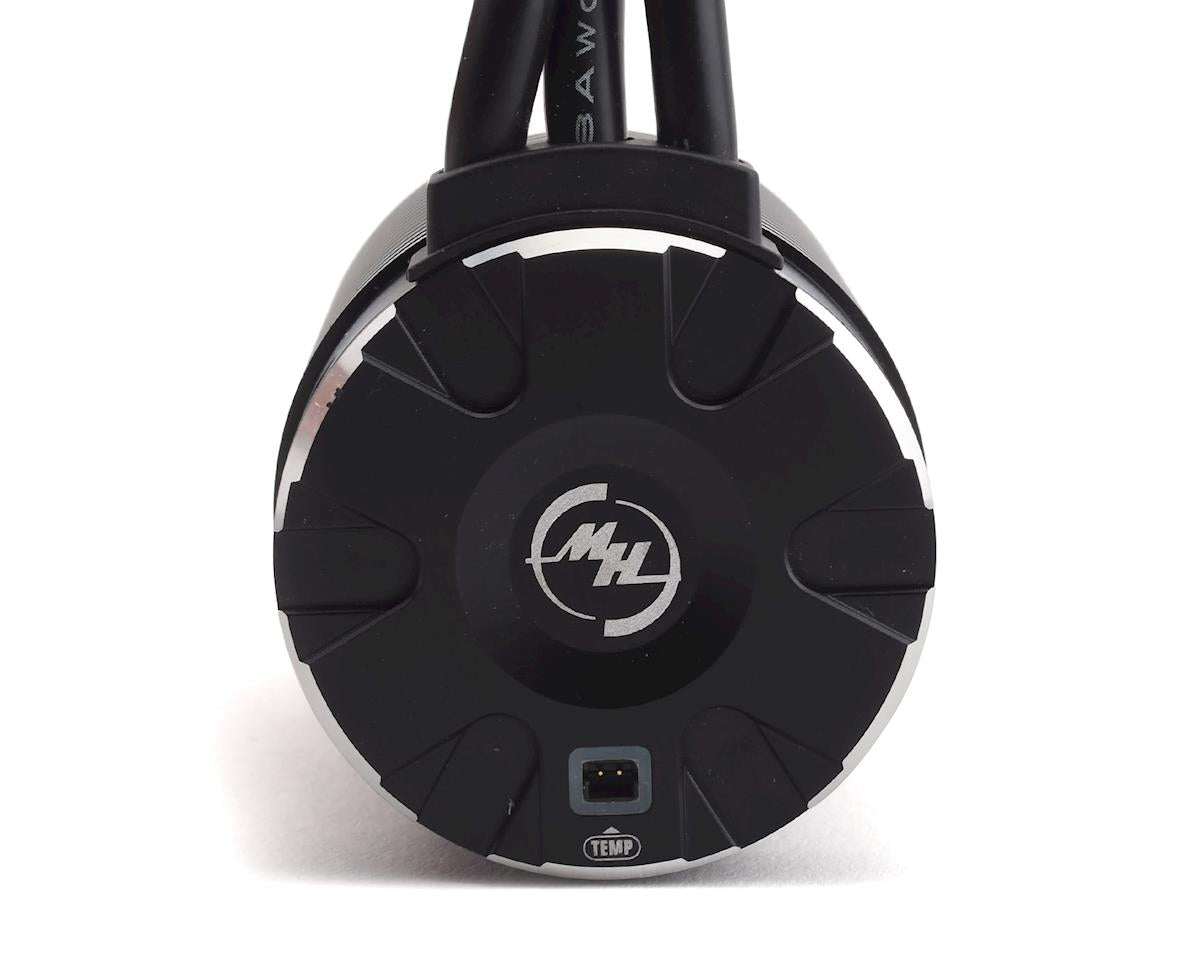

  • Motor:
    • Model: 5687SL-1100KV
    • Pole: 4
    • KV (No-load): 1100KV
    • Resistance: 0.0041 Ω
    • Current (No-load): 4.1 A
    • Max Output Power: 5800 W
    • Current at the point of M.O.P: 200 A
    • Motor Diameter: 56mm
    • Motor Length: 87mm
    • Shaft Diameter: 8.0mm
    • Shaft Length: 31.0mm
    • LiPo Cells: 3-8
    • Weight: 916g (32.21oz)
    • Applicable: 1/5th RC Vehicles Truck/Dragster
  • ESC:
    • Continuous Current: 160A
      Peak Current:
    • Peak Current:
    • Peak Current: 1,050A
    • Motor Type: Sensorless Brushless Motor
    • Applications: 1/6th Touring Car, Buggy, Truggy and Truck
    • Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
    • LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
    • BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
    • Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
    • Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
    • Size (LxWxH): 70x56x46.5mm
    • Weight: 240g
    • Programming Port: FAN /PRG Port
