ProTek RC 500BL "Black Label" 1/12 High Torque Brushless Mini Servo (High Voltag

SKU: SKU: 707470760334

• Description

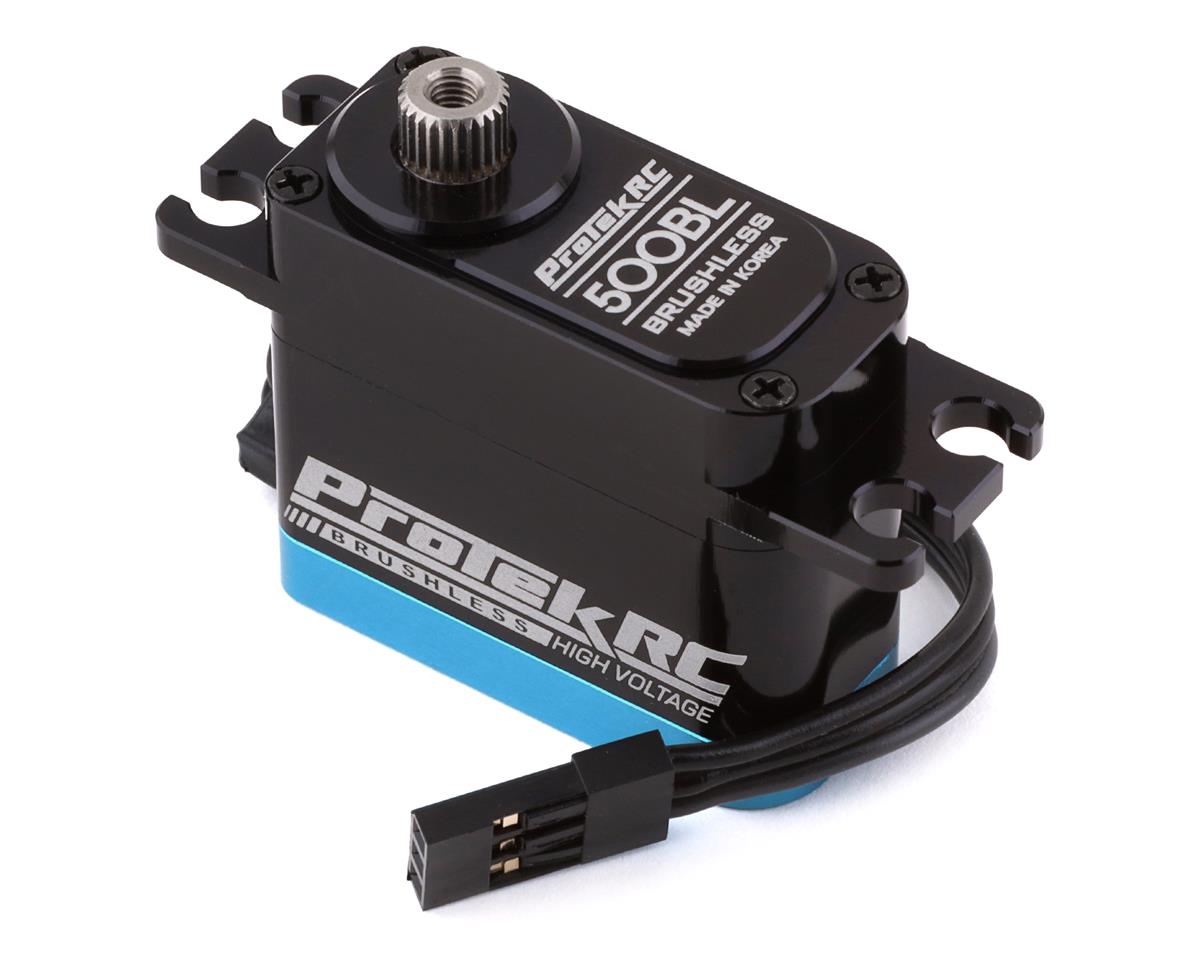

  ProTek RC 500BL "Black Label" 1/12 High Torque Brushless Mini Servo (High Voltage/Metal Case)

  ProTek RC 500BL Black Label High Torque Brushless Mini ServoThe ProTek 500BL Mini is the next step in mini servo performance. Developed for 1/12 and 1/10 pan car, as well as 1/10 Pro Class drag racing pan car style chassis that use a mini size servo, this brushless option produces 186oz of torque and .06 transit speed at 7.4 volts - with superior efficiency and lifespan. A black anodized aluminum case with a blue anodized bottom cover provides a stealthy and clean look. The aluminum case allows for extreme durability and a precision fit for the servo gears to provide the precise control necessary for demanding enthusiasts. Metal gears and brushless circuitry round out the package to create a robust option that will go the distance in high demand applications.

  NOTE:

  • If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
  • Modification may be required for drag applications.

  Features:

  • Ideal for any 1/12 & 1/10 Pan Cars and Pro Class Drag Racing applications
  • Full aluminum black anodized case
  • High voltage circuitry
  • 0.08 transit speed, and 161 oz-in of torque @ 6.0V
  • 0.06 transit speed, and 186 oz-in of torque @ 7.4V
  • Full metal gears
  • Brushless motor

  Servo Model	500BL
  Recommended Application	1/12 & 1/10 Pan Car or Pro Class Drag Racing
  Operating Voltage	4.8V - 7.4V
  Operating Temperature	14° to 140° F (-10 to +60° C)
  Operating Speed @ 6.0V	0.08/60° sec
  Operating Speed @ 7.4V	0.06/60° sec
  Dynamic Torque @ 6.0V	161 oz-in (11.59 kg-cm)
  Dynamic Torque @ 7.4V	186 oz-in (13.39 kg-cm)
  Motor Type	Brushless Digital
  Output Shaft	25 Tooth
  Gears	Metal
  Weight	42g
  Pulse/Frequency	1520Us / 333hz
  Dimensions	34x30.80x15.50mm
  Length (Bottom to Mount)	21.30mm
