Spektrum SPMXC2080 RC S1100 G2 AC Smart Charger (6S/12A/100W)

SKU: SKU: SPMXC2080

• Description

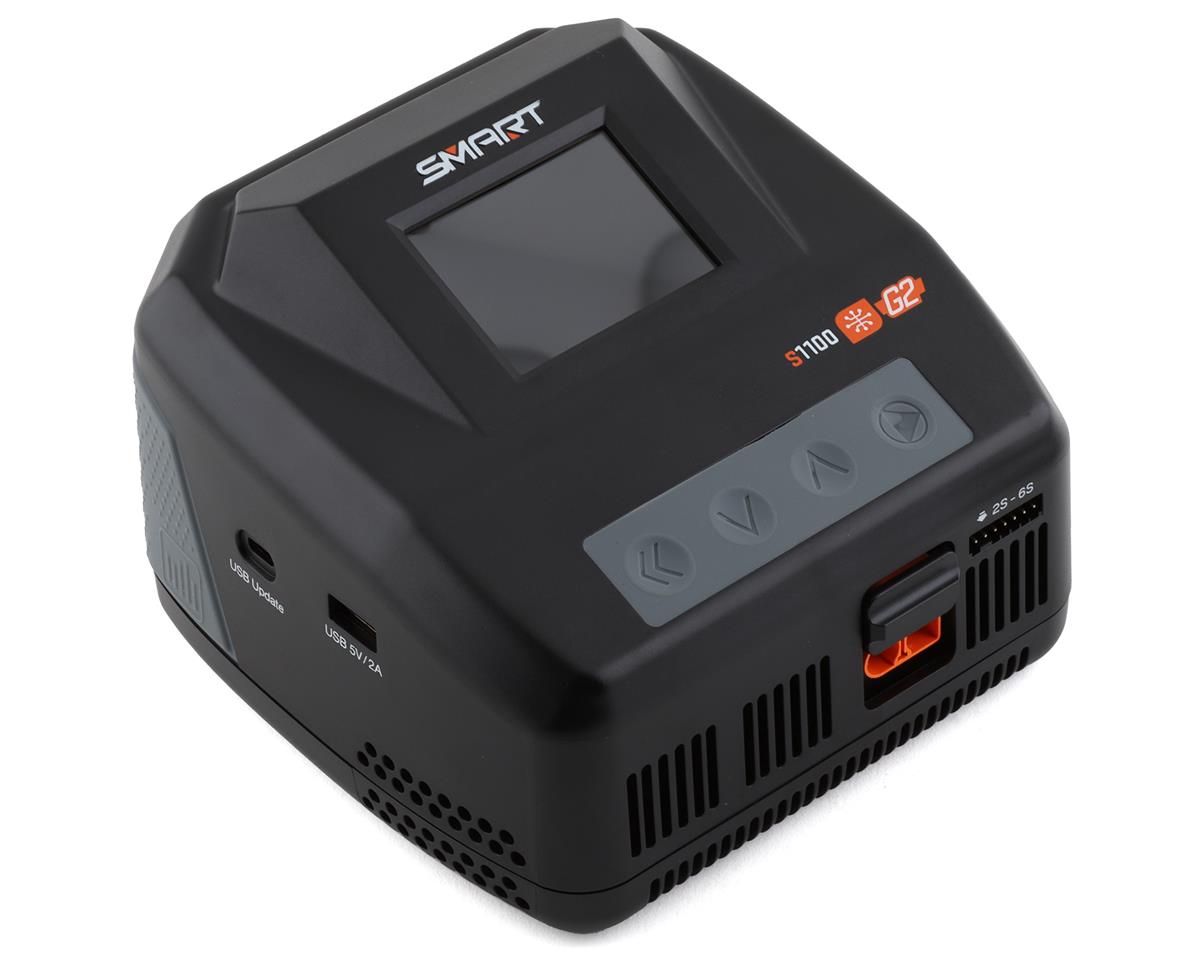

  The Spektrum RC S1100 G2 AC Smart Charger brings high performance charging features with the easy to use Spektrum G2 technology.





  Select IC3 or IC5 Charging Output:

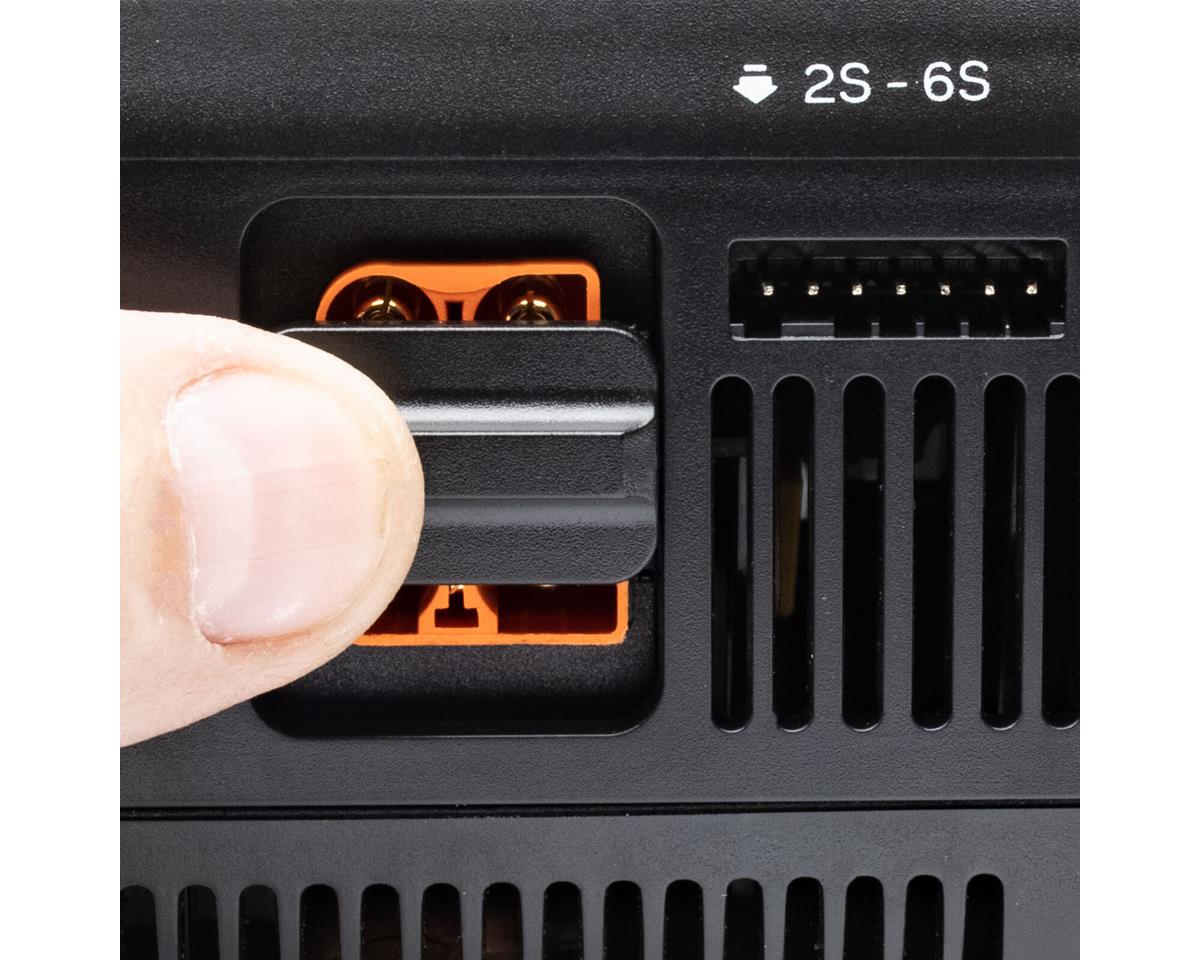

  The Spektrum S1200 Smart G2 AC Charger includes IC3 and IC5 output ports for charging your Smart batteries without adapters. Use the slider to select either the IC3 or IC5 port and then charge your battery with up to 200W power. You can charge AND balance Smart G2 batteries with one simple IC3 or IC5 connection — no separate balance lead is required.



  Improved User Interface:

  To provide the easiest, most helpful, and most hassle-free charging experience, the S1200 G2 AC charger includes an updated user interface with improved menus, icons, and navigation tools. For maximum safety, simplicity, and charging ease, an updated Auto Charge feature recognizes Smart battery charging parameters as soon as you connect your pack and begins proper charging automatically.



  Improved Case Design:

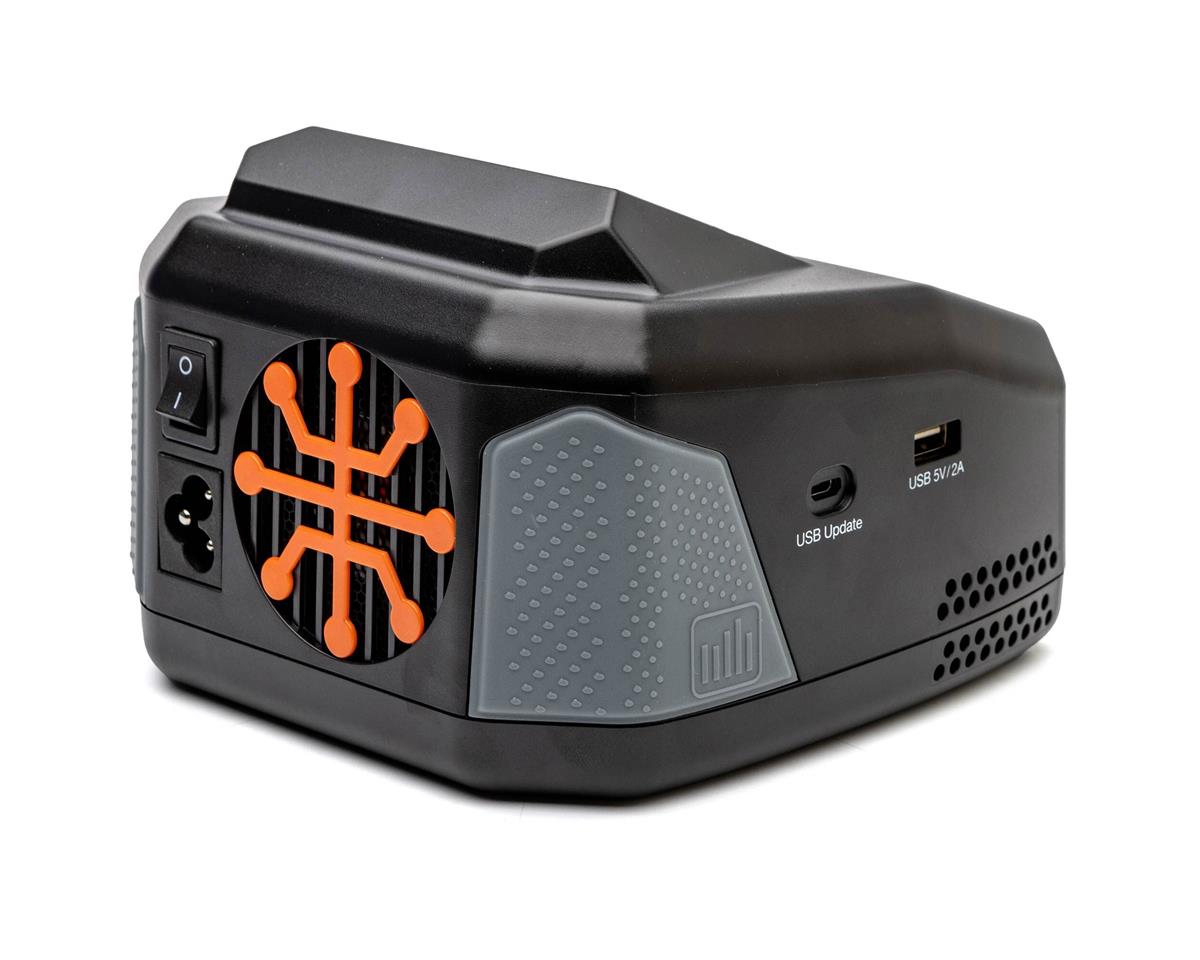

  The charger's sleek case fits perfectly on your workbench and in your pit or field bag. Its power cord is detachable for easy transport. Rubber grips help you hold the charger securely while connecting and removing batteries. USB input and output ports enable you to update charger firmware and to charge secondary devices. Other features include a built-in ON/OFF power switch and low-noise cooling fan.

  Features:


  • Delivers 100W power for charging
  • Charges and balances Smart batteries with one simple IC3 or IC5 connection — no separate balance lead needed
  • Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
  • Charges virtually any RC battery (use Smart batteries to benefit from all charger features)
  • Smart software tracks and stores numerous Smart battery data
  • Includes IC3 and IC5 charging output ports — no separate adapters required to charge different Spektrum Smart batteries
  • An on-screen clock counts down the remaining charge time until your Smart battery is fully charged and ready to use
  • Updated user interface features fresh, intuitive menus, icons, and navigation tools, plus non-slip, easy-to-use buttons
  • USB input and output ports are included for updating firmware and charging secondary devices

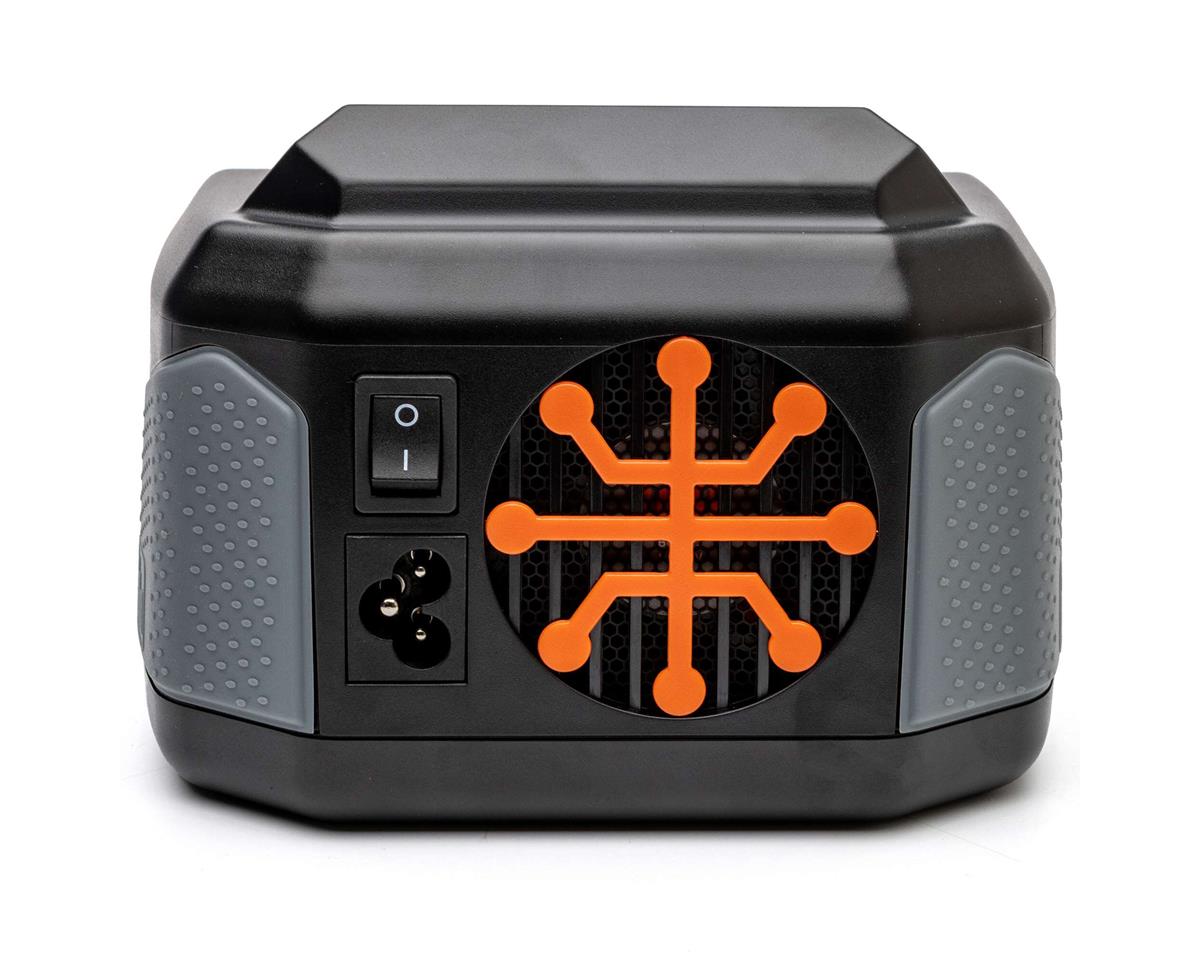

  • ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control
  • Detachable power cord makes transporting more convenient
  • Compact size and the sleek, sturdy case fits nicely on a workbench and in pit or field bags

  Specifications:
  Product Height: 4.1" (104 mm)
  Product Width: 5.7" (145 mm)
  Product Length: 5.7" (145 mm)
  Product Weight: 1.75 lb (795g)

  Amp Meter: Yes

  Output Connector: IC3 and IC5 selectable

  Peak Detection: Yes

  Short Circuit Protection: Yes

  Battery Type: LiFe (3.3V per cell), LiHV (3.8V per cell), LiIon (3.3V per cell), LiPo (3.7V per cell), NiCd (1.2V per cell), NiMH (1.2V per cell), Pb (2.0V per cell)

  PC Connectivity: Yes

  Programmable: Yes

  Normal/Standard Charge Rate: 0.1 - 10.0A, adjustable in 0.1A increments (100W Max)

  Software Updates: Yes

  Technology: Smart

  Discharge: 0.1 - 1.5A, adjustable in 0.1A increments (15W Max)

  Maximum Charge Rate: 10.0A (100W Max)

  Reverse Polarity Protection: Yes

  Thermal Protection: Yes

  Battery Balance Connector: JST-XH

  Battery Temperature Monitoring: Yes

  Charge Protection Circuitry: Yes

  Number of Cells: 1 - 6S Li-Ion/LiPo/LiFe, 1 - 16S NiCd/NiMH, 1 - 12S Pb

  Selectable Charge Rate: Yes

  Over Current Protection: Yes

  Integrated Balancing: Yes - Internal Balancer & Internal Adapter

  Maximum Continuous Discharge Current: 1.5A (15W Max)

  Voltage Meter: Yes

  Input Voltage: 100 - 240V AC, 50 - 60 Hz




  Includes:


  • (1) S1100 Smart AC Charger

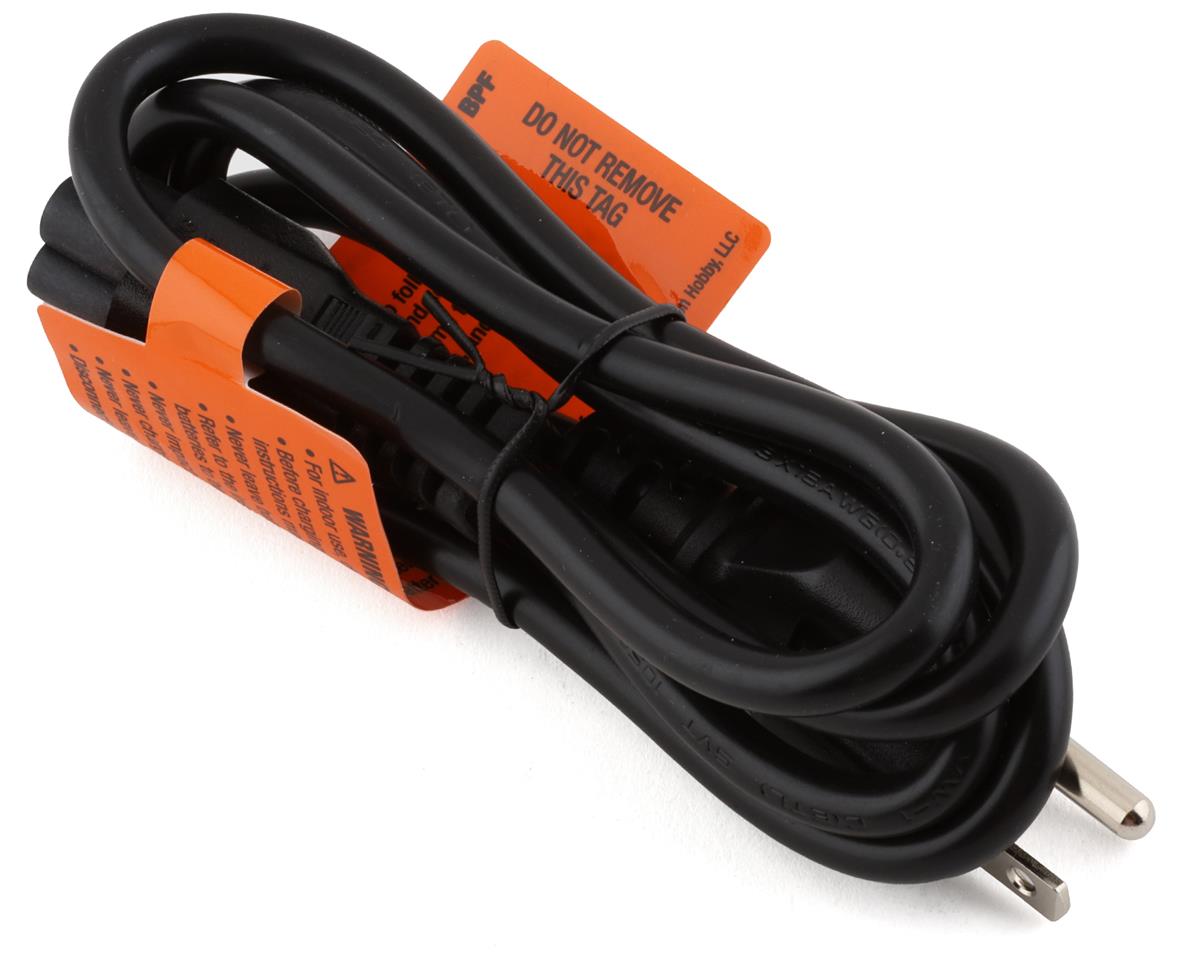

  • (1) Power Cord
  • (1) Manual
